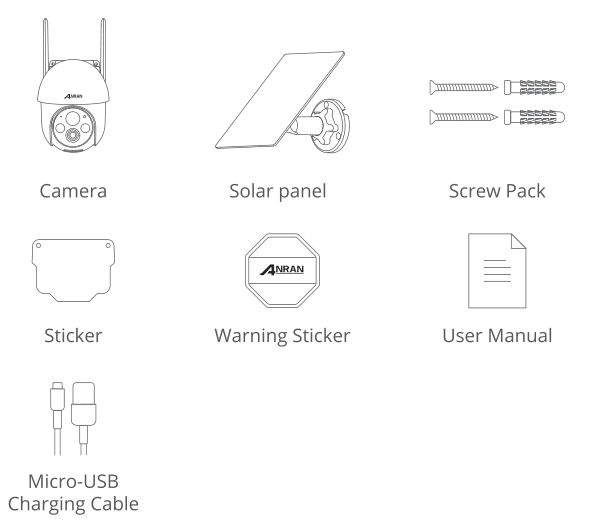

What’s Included

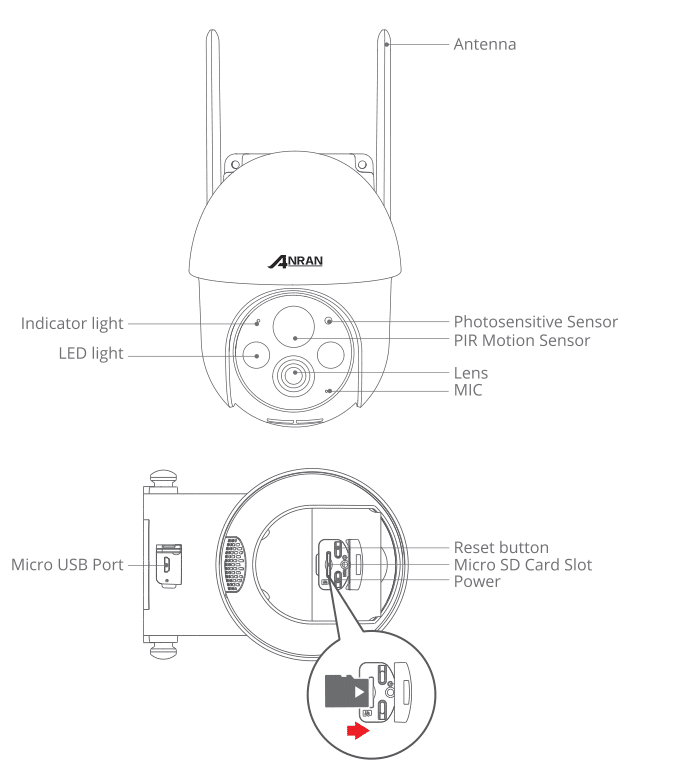

Product overview
CAUTION: Please insert the Micro SD Card according to the direction shown in thediagram. Micro SD Card might JAM if inserted incorrectly and device could bedamaged.
SD Card Port: Support micro SD card for local storage (Max 128GB).
Reset button: Used to restore the camera to factory settings (Press and hold on5-8s)
Card capacity requirements:8-128GB
Read and write speed requirements: class10
levelFile format: FAT32.
CloudEdge App installation and Setup
Search ” CloudEdge” on apple store or google play to download the app.
from Google Play
from Apple Store
or Scan the following QR code
Mounting the camera

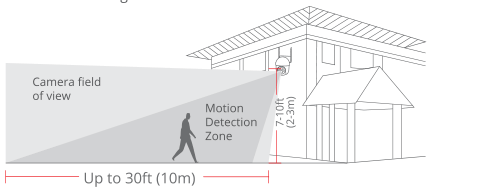

Select Height and location
Hang the camera 7-10 ft (2-3 m) above the ground. This height maximizes thedetection range of the motion sensor of the camera. Avoid placing the cameraunder direct sunlight.

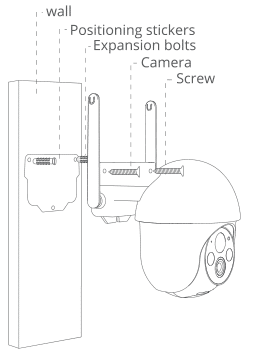

Installation
- Drilling according to position sticker, drill bit: 15/64(6 mm).
- Insert the plugs.
- Tighten the screw.
Installation instruction of solar panel

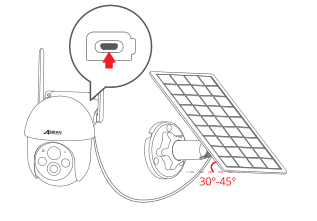

- keep the installation angle of solar panels about 30-45° with the horizontalplane, as shown in the picture below.
- The installation between the solar panel and the camera is shown in thefollowing figure(open up the silicone cover at the bottom of the camera,remove the small center part of the cover, insert the power cord through theopening and plug it into the USB port and then close the cover taking up anyslack in the power cord from the solar panel).

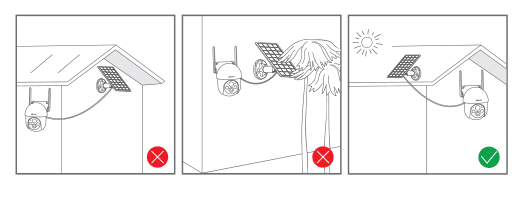

Tips for the installation of solar panel
- When installing in the northern hemisphere, face the panel to the south, andwhen installing in the southern hemisphere, face the panel to the north.
- Take care to install the solar panel so that the sun is not blocked by any itemssuch as eaves, trees branches, etc.

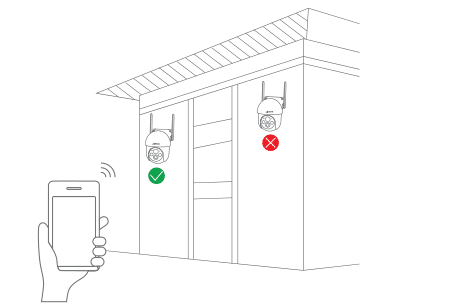

Test the Wifi signal at installation position
Use cell phone to test Wifi signal quality at the installation position beforeinstalling camera, make sure the Wifi router can provide good Wifi signal.
Register an account
The CloudEdge app that is necessary to operate the camera.Signing up for storage in the cloud is totally optional and is really not necessarywhen using an onboard Micro SD card.

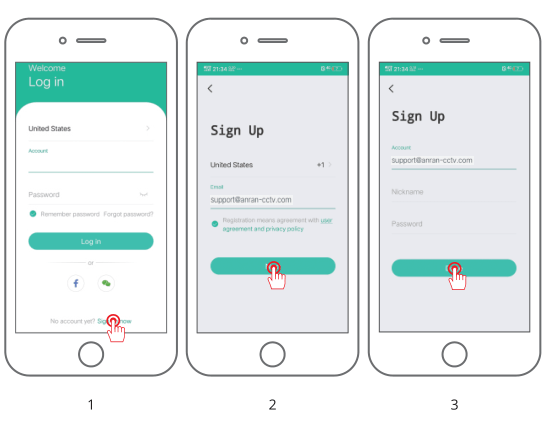

- Open the APP to sign up an account. Go to the login interface, and click “SignUp”.
- Sign up with your email address, and click “Next”.
- Set up an “Nickname” and “Password” for your APP, click “Done” to complete.
Set up WiFi for the camera
- Bring both your mobile phone and your camera close to your router(max distance of 5 meters/16 feet).
Note: The camera can only connect to a 2.4 GHz WiFi signal. It does notsupport using a 5 GHz signal. Therefore, please ensure you connect to a 2.4 GHzsignal on your network as shown in the below illustration.

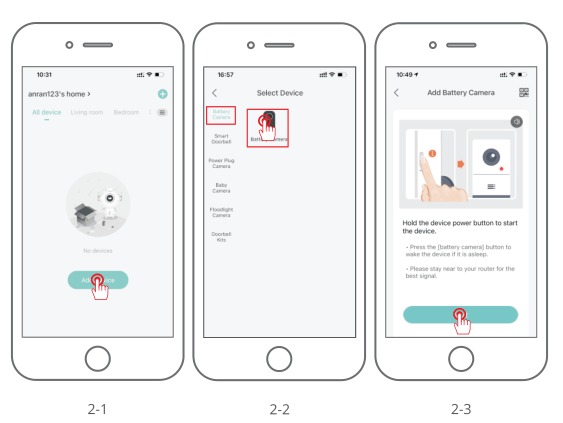

2.Log in to “CloudEdge”, then tap the “+” icon in the center. Tap “Battery Camera”to add device.

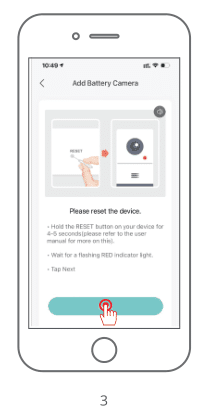

Reset the device and wait for a flashing RED indicator light, then tap “Next”

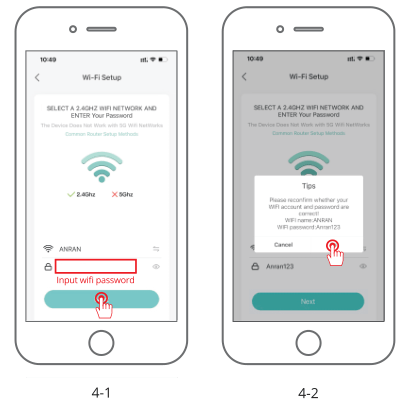

Selecting the Wi-Fi the device needs to connected with (your home Wi-Fi), inputthe password and click “Next”

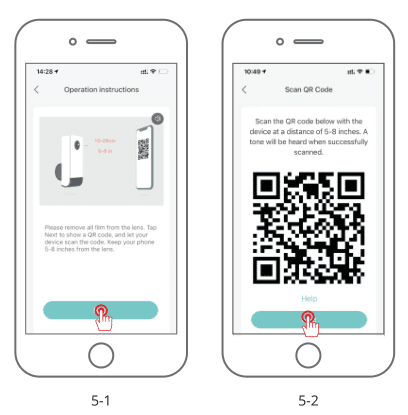

- Use the camera to scan the QR code on your mobile phone as noted below.When the scan is complete you will hear a prompt tone then push Next.

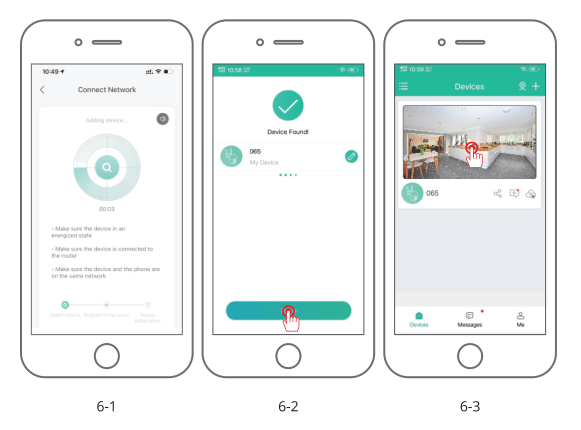

When connecting, as stated earlier, you should make sure that the router.mobile phone and the camera and are as close together as possible(max 5 meters/16 feet). When a successful connection occurs a “click” will beheard and a checkmark will be noted as shown below. The camera willshow with a numerical name that can be changed to your likings such asDriveway Camera, Street View Camera or whatever.
