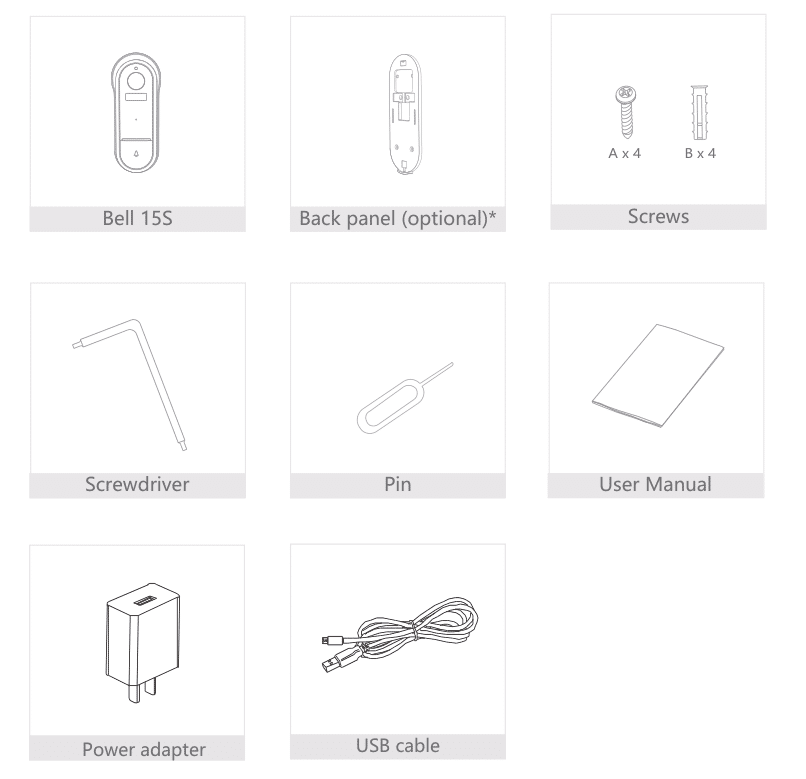

What’s in the box
Consult the checklist below for all components.
The back panel without waterproofing is optional.

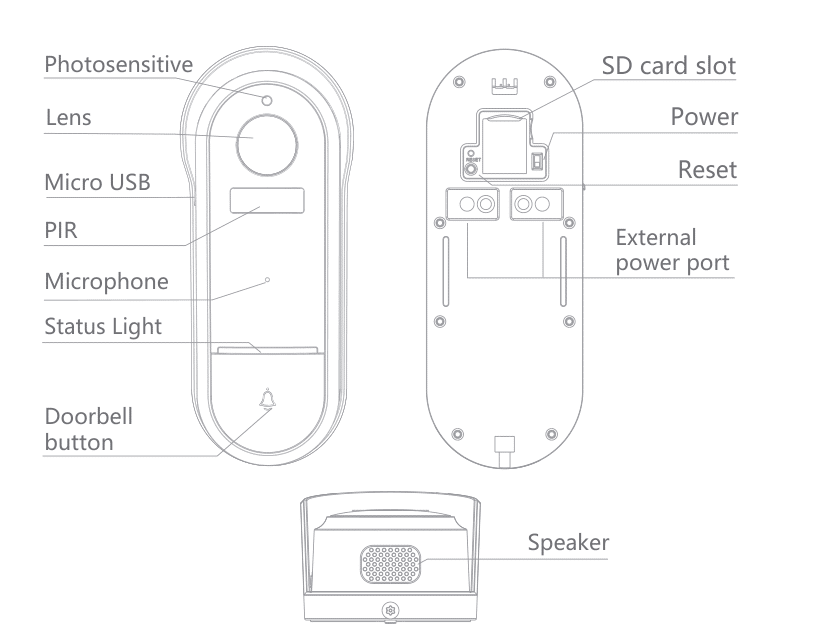

Description
| Power | DC 5V/1A（Battery); AC 12~24V (AC supply) |
| Doorbell button | Press the button to activate the doorbell |
| Status light | Solid red light on: network is malfunctional Blinking red light: wait for network connection (slowly) Connecting the network (fast) Solid blue light on: camera is working correctly |
| Microphone | Capture sound for your video |
| SD card slot | Support local SD Card storage (Max.128G) |
| Reset | Press and hold on for 5 seconds with pin to reset the doorbell (unable to unbind the bell from account) |
| Charging indicator | Red indicator solids on: battery is charging Blue indicator solids on: Fully charged |
Installation
Battery Installation

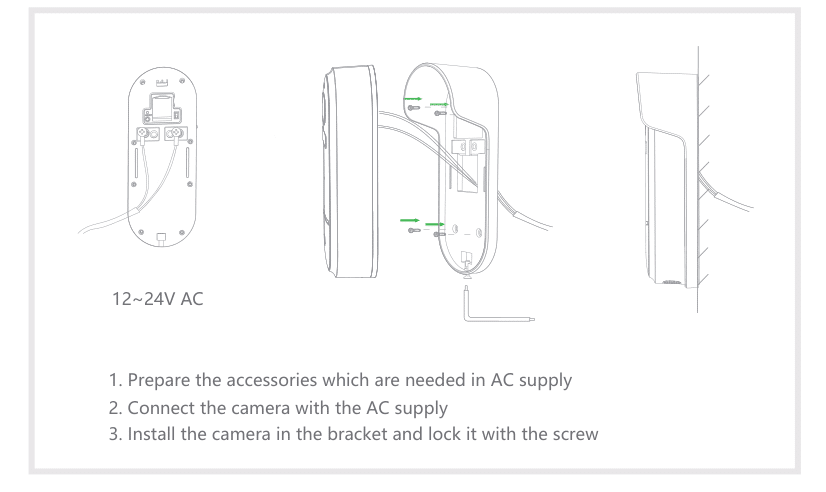

AC Installation
Connection
Download
CloudEdge is available for both iOS and Android OS. Search the name ‘CloudEdge’ in the App Store or Google Play, or scan the QR code to download the app.
Add device
Log in to the CloudEdge, select “Add Device”, and add the smart camera to the App according to the screen tips(Make the smart camera close to the router when configuring).
NOTE: If you need to re-select the WiFi network, please press and hold the “RESET” button for 5 seconds. The device will restart, and the indicator will flash red.
Function
Remote wake-up
The camera will be in sleep mode to save power; you can have a preview in the App.
Full-duplex audio
You can see and hear the visitor in your App from the camera.
PIR
When the camera detects someone stopping by, it sends an alarm message to your cell phone.
Low battery alarm
You can set a low-battery alarm threshold in your phone App. The threshold is set to a minimum of 10% and a maximum of 50%. When the battery power of the camera is lower than the set threshold, the App will have a reminder.
Record
Using an SD card or Opening the Cloud-Storage Service to keep recording for every moment.
Day & Night
Powerful night vision means no interruptions, even in complete darkness.
FAQ
Q: The device cannot be previewed properly?
A: Check whether the network is normal. You can place the camera close to the router, and if not, it is recommended that the device be reset and added again.
Q: Why is it still on the list of devices after resetting?
A: The reset device only resets the network configuration of the camera but cannot change the configuration on the App. Remove the camera, and it must be deleted by the App.
Q: How do you cut the camera network to another router?
A: First, remove and reset the device on the App and then configure the device again by the App.
Q: Why doesn’t the device identify the SD card?
A: it is recommended to plug in an SD card after a power cut. Confirm whether the SD card is normally available and the format is FAT32. And the TFcard can’t be identified when the internet environment is not good.
Q: Why can’t I get the notifications with my cell phone app?
A: Please confirm that the App has been running on the phone and the relevant reminder function has been opened; Message notification and authority confirmation in the mobile phone system has been opened
